Product Description

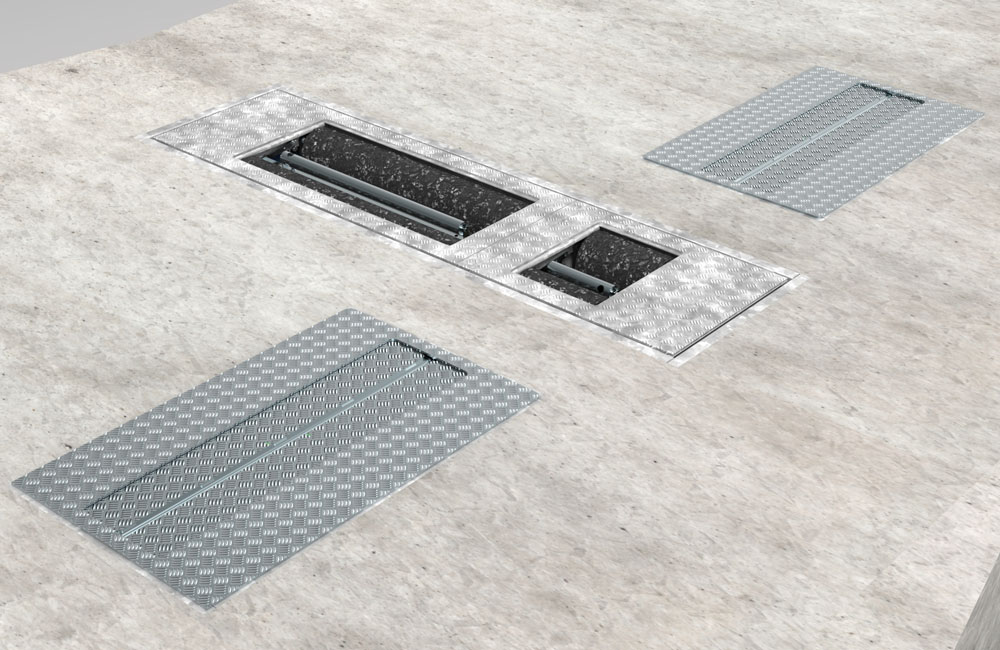

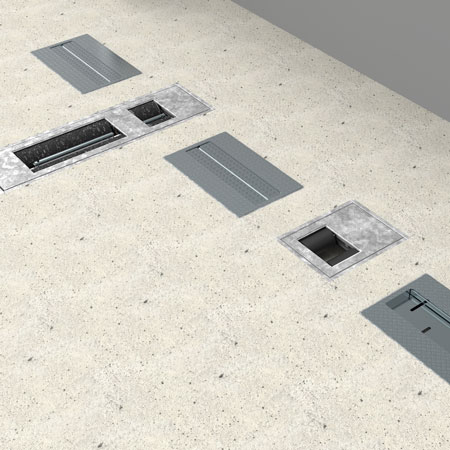

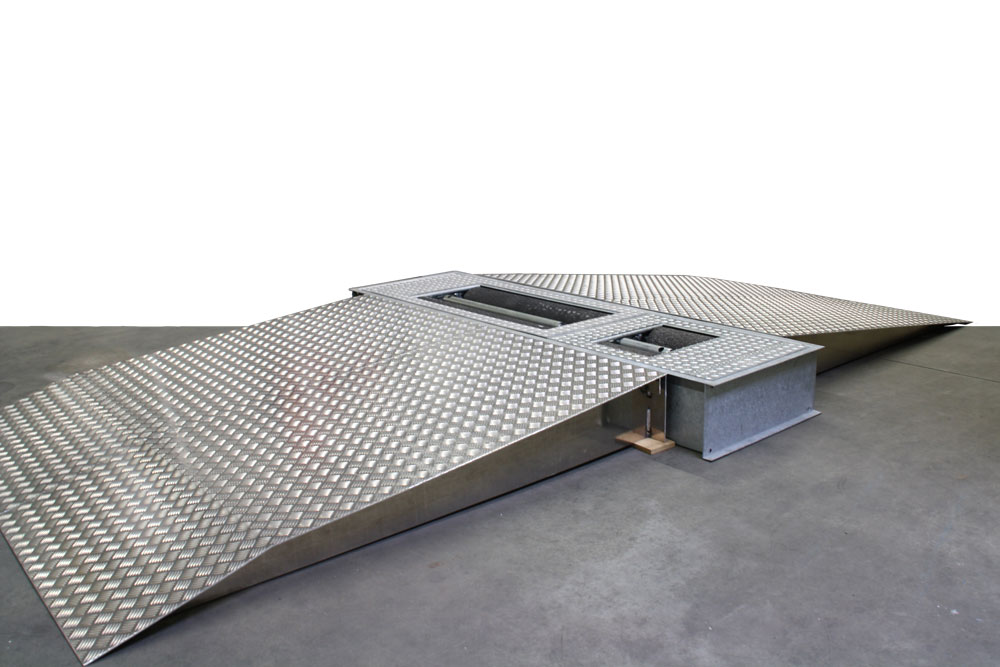

  • The BM1010 test line is a unique test line for brake test and speedometer test of motorcycles, 3-wheeled vehicles and ATV’s.

    The BM1010 test line consists of one or more of the following equipment designing a customized test line:

    • BM1010 roller brake tester
    • BM200 speedometer tester
    • Unique wheel clamp system

    All equipment will be controlled from one embedded electronics; the X010 system.

    The equipment features a large range of options that allows for a customized configuration.

  • Robust and long lasting:
    • All steel is of highest quality and hot galvanized.

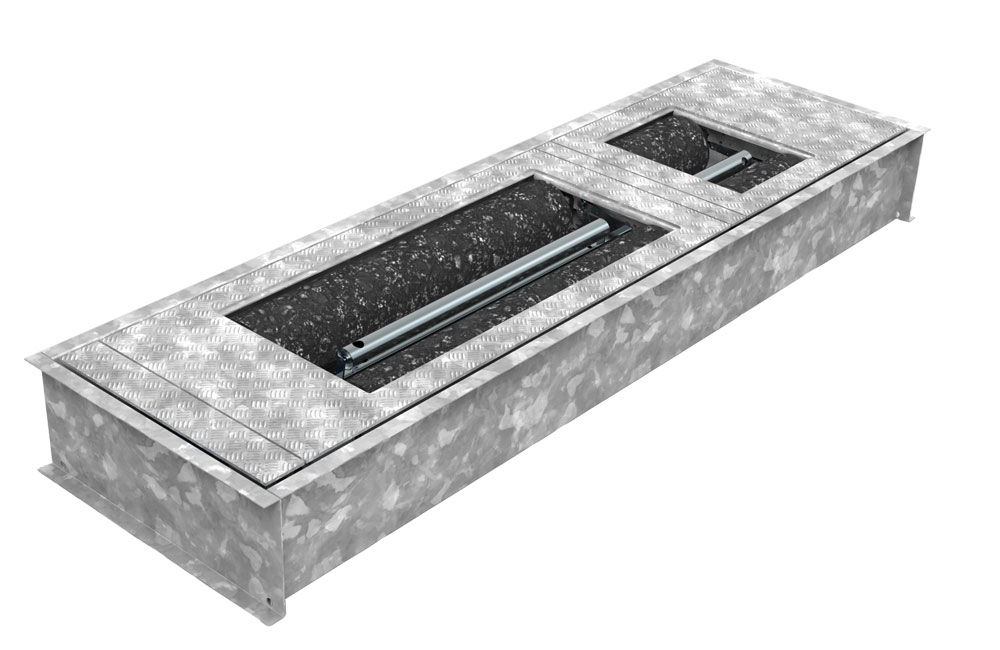

    • Consists of an integral motorized gear box, two main rollers and a spring loaded sensor roller, all placed in a galvanized steel frame.
    • The wear surfaces of the rollers are based on mesh steel to ensure a long life time and accurate measurements.
  • Easy to use with BM software:
    • Integrated guide.
    • Advanced graphics printout.
    • Diagnostic printout with or without connection to PC/Notebook.
    • Calculation of test results according to the requirements of many national authorities.


  • IT system using latest app technology for smartphone and tablet (Windows and Android).
  • The display can be mounted either on the wall, saving floor space, or on floor column devices, that are designed so equipment is protected even when floor is cleaned with chemicals. It can also be mounted on a trolley making it easy to move around.
  • Modular system to test 2 wheelers, 3 wheeler (side car and tricycle), and 4 wheeler (quad), with auto detect of vehicle type.
