Product Description

  • BM1010 roller brake tester is a brake tester series for motorcycle brake testing. It is used in test of most 2-, 3-, and 4-wheeled motorcycles. The series is modularly designed and based on three types of hot galvanized roller beds with different roller lengths: 300, 600 and 1000 mm.
  • This brake tester features a large range of options that allows for a customized configuration
  • Robust and long lasting:
    • All steel is of highest quality and hot galvanized.

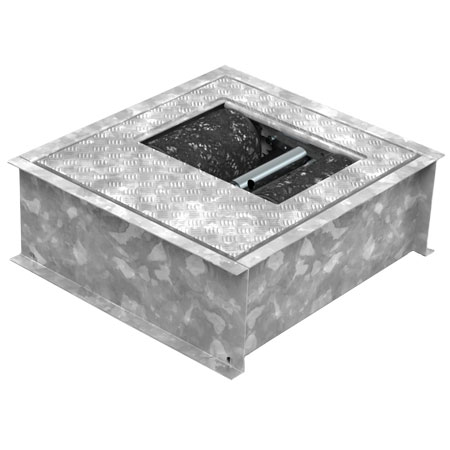

    • Consists of an integral motorized gear box, two main rollers and a spring loaded sensor roller, all placed in a galvanized steel frame.
    • The wear surfaces of the rollers are based on mesh steel to ensure a long life time and accurate measurements.
  • Easy to use with BM software:
    • Integrated guide.
    • Advanced graphics printout.
    • Diagnostic printout with or without connection to PC/Notebook.
    • Calculation of test results according to the requirements of many national authorities.


  • IT system using latest app technology for smartphone and tablet (Windows and Android).
  • Only 250 mm deep and can therefore be installed in most workshops or even on-ground.
  • The display can be mounted either on the wall, saving floor space, or on floor column devices, that are designed so equipment is protected even when floor is cleaned with chemicals. It can also be mounted on a trolley making it easy to move around.
  • A highly versatile modular test system, it can accommodate 2 wheelers, 3 wheeler (side car and tricycle), and 4 wheeler (quad), with auto detect of vehicle type.
